The angioplasty dilatation catheter with ultra low crossing profile,

high pressure capability and reduced deflation time

Of course Made In Germany





PRODUCT DETAILS

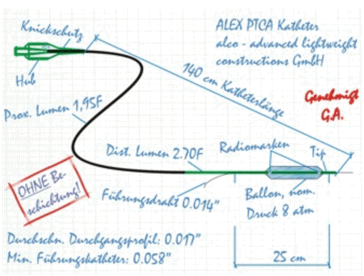

Double lumen PTCA catheter for rapid exchange (RX) use with a semi-compliant balloon.

Two radio-opaque markers, proximal and distal.

140 cm working catheter length, 25 cm from tip, 1.95 F Stainless Steel proximal shaft

Nominal inflation pressure at 8 atm

Rated burst inflation pressure at 16 atm / 14 atm for balloon diameters 3.50 mm @ L > 35 mm and for balloon diameters 4.00 mm @ L > 30 mm.

0.017 average crossing profile. 0.058 min. guiding catheter I.D. 0.014 max. guide wire O.D.





Technical specifications



Type of catheter design

Double lumen PTCA catheter

Catheter design details

Rapid exchange,

140 cm working length, 25 cm from tip

Balloon type

semi-compliant

Balloon folding

Three-folding

Proximal shaft

1.95 F

Distal shaft

2.70F

Radio markers

Femoral and brachial markers

Standard lengths

8/9/10/12/14/15/16/18/20/22/24/25/30/33/35/40 mm,

other length on demand

Expansion range

1.5/2.0/2.25/2.5/2.75/3.0/3.25/3.5/4.0 mm

other diameters on demand

Nominal inflation pressure

8 atm (0.8 MPa)

Rated burst inflation pressure

16 atm (1.6 MPa)

14 atm (1.4 MPa) for 3.50 mm @ L > 35 mm

and 3.75 mm @ L > 35 mm

14 atm (1.4 MPa) for 4.00 mm @ L > 30 mm

Flexibility

Excellent

Average crossing profile

0.017" (0.43 mm)

Min. guiding catheter I.D.

0.058 (1.47 mm)

Max. guide wire O.D.

0.014 (0.36 mm)

Storage

Store in a dry place below 40 C

Keep away from light

Sterilization

Ethylene oxide gas (ETO)





Order-Number



Balloon

length

(mm)

Balloon diameter (mm)

1.50

2.00

2.25

2.50

2.75

3.00

3.25

3.50

4.00

8

AX0815

AX0820

AX08225

AX0825

AX08275

AX0830

AX08325

AX0835

AX0840

9

AX0915

AX0920

AX09225

AX0925

AX09275

AX0930

AX09325

AX0935

AX0940

10

AX1015

AX1020

AX10225

AX1025

AX10275

AX1030

AX10325

AX1035

AX1040

12

AX1215

AX1220

AX12225

AX1225

AX12275

AX1230

AX12325

AX1235

AX1240

14

AX1415

AX1420

AX14225

AX1425

AX14275

AX1430

AX14325

AX1435

AX1440

15

AX1515

AX1520

AX15225

AX1525

AX15275

AX1530

AX15325

AX1535

AX1540

16

AX1615

AX1620

AX16225

AX1625

AX16275

AX1630

AX16325

AX1635

AX1640

18

AX1815

AX1820

AX18225

AX1825

AX18275

AX1830

AX18325

AX1835

AX1840

20

AX2015

AX2020

AX20225

AX2025

AX20275

AX2030

AX20325

AX2035

AX2040

22

AX2215

AX2220

AX22225

AX2225

AX22275

AX2230

AX22325

AX2235

AX2240

24

AX2415

AX2420

AX24225

AX2425

AX24275

AX2430

AX24325

AX2435

AX2440

25

AX2515

AX2520

AX25225

AX2525

AX25275

AX2530

AX25325

AX2535

AX2540

30

AX3015

AX3020

AX30225

AX3025

AX30275

AX3030

AX30325

AX3035

AX3040

33

AX3315

AX3320

AX33225

AX3325

AX33275

AX3330

AX33325

AX3335

AX3340

35

AX3515

AX3520

AX35225

AX3525

AX35275

AX3530

AX35325

AX3535

AX3540

40

AX4015

AX4020

AX40225

AX4025

AX40275

AX4030

AX40325

AX4035

AX4040

other lengths and diameters (e. g. 2.25 mm) on request

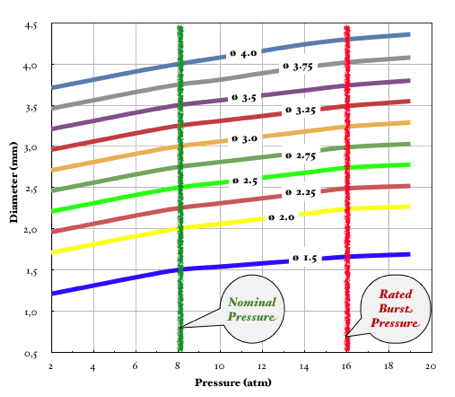

Compliance Data (In vitro compliance @ 37.5C, tolerance 0.10 mm)





Pressure

atm / MPa

Balloon Diameter (mm)

1.50

2.00

2.25

2.50

2.75

3.00

3.25

3.50

4.00

2 / 0.2

1.21

1.71

1.96

2.21

2.46

2.71

2.96

3.21

3.71

4 / 0.4

1.31

1.81

2.06

2.31

2.56

2.81

3.06

3.31

3.81

6 / 0.6

1.41

1.91

2.16

2.41

2.66

2.91

3.16

3.41

3.91

8 / 0.8

Nom.

1.50

2.00

2.25

2.50

2.75

3.00

3.25

3.50

4.00

10 / 1.0

1.54

2.06

2.31

2.56

2.81

3.06

3.31

3.56

4.08

12 / 1.2

1.58

2.12

2.37

2.62

2.87

3.12

3.37

3.62

4.16

14 / 1.4

1.62

2.18

2.43

2.68

2.93

3.18

3.43

3.68

4.24

16 / 1.6

RBP

1.66

2.24

2.49

2.74

2.99

3.24

3.49

3.74*

4.30*

18 / 1.8

1.69

2.27

2.52

2.78

3.03

3.29

3.55

3.80

4.36

22 / 2.2

ABP

--

--

--

--

--

--

--

--

24 / 2.4

--

ABP

ABP

--

--

--

ABP

ABP

ABP

26 / 2.6

--

--

--

ABP

ABP

ABP

--

--

--

Nom.: Nominal Pressure

ABP: Average Burst Pressure

RBP: Rated Burst Pressure (do not exceed)

*14 atm for balloon diameter 3.50, 3.75 mm and balloon length > 35 mm / for balloon diameter 4.00 mm and balloon length > 30 mm
