The highly flexible bare metal 316LVM coronary stent with smooth electropolish surface and very low crossing profile for excellent pushability

Of course Made In Germany





PRODUCT DETAILS



Pre-mounted stent onto a double lumen PTCA catheter for rapid exchange use with a semi-compliant balloon.

Two radio-opaque markers, proximal and distal.

140 cm working catheter length, 25 cm from tip.

Nominal inflation pressure at 8 atm, rated burst inflation pressure at 16 atm / 14 atm for 3.50 mm @ L > 35 mm and for 4.00 mm @ L > 30 mm.

0.037” average crossing profile. 0.064” min. guiding catheter I.D. 0.014” max. guide wire O.D.





Technical specifications



Type of stent design

Slotted tube, open cell design connected with 3 interlinks per segment

Stent design details

6 zigzag elements per ringelement

Standard lengths

8/12/16/20/24/28/32/38/42 mm

Stent material

316 LVM

Expansion range

2.5/2.75/3.0/3.5/4.0 mm

Strut thickness

0.0039" (0.10 mm)

Strut width (main segment)

0.0047" (0.12 mm)

Strut width (interlink)

0.0039" (0.10 mm)

Shortening after expansion

< 2 %

Mechanical recoil

< 3.0 %

Metal coverage

~ 15 %

Longitudinal flexibility

Excellent

Average crossing profile

0.037" (0.94 mm)

Stent magnetism

Non magnetic

Min. guiding catheter I.D.

0.064” (1.63 mm)

Max. guide wire O.D.

0.014” (0.36 mm)

Stent delivery system

Rapid exchange delivery system, 140 cm working length, 25 cm from tip. A semi-compliant balloon, nominally max. 0.5 mm longer than the stent, with two radiopaque markers. Nominal inflation pressure: 8 atm (0.8 MPa); Rated burst inflation pressure: 16 atm (1.6 MPa) / 14 atm (1.4 MPa) for 3.50 mm, 3.75 mm @ L > 35 mm and for 4.00 mm @ L > 30 mm





Order-Number



Stent

length

Stent diameter

2.5 mm

2.75 mm

3.0 mm

3.5 mm

4.0 mm

8 mm

AL200825

AL2008275

AL200830

AL200835

AL200840

12 mm

AL201225

AL2012275

AL201230

AL201235

AL201240

16 mm

AL201625

AL2016275

AL201630

AL201635

AL201640

20 mm

AL202025

AL2020275

AL202030

AL202035

AL202040

24 mm

AL202425

AL2024275

AL202430

AL202435

AL202440

28 mm

AL202825

AL2028275

AL202830

AL202835

AL202840

32 mm

AL203225

AL2032275

AL203230

AL203235

AL203240

38 mm

AL203825

AL2038275

AL203830

AL203835

AL203840

42 mm

AL204225

AL2042275

AL204230

AL204235

AL204240

other lengths and diameters on request

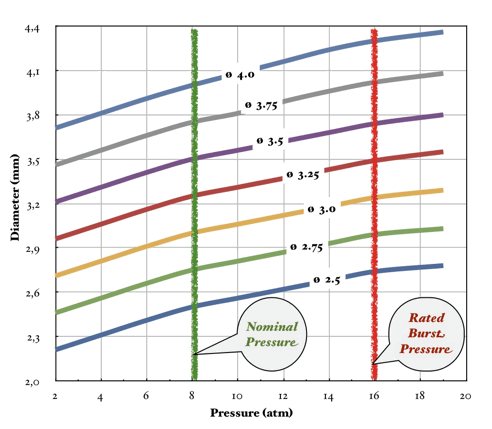

Compliance Data (In vitro compliance @ 37.5°C, tolerance ± 0.10 mm)





Pressure

atm/MPa

Stent Placement I.D. (mm)

2.50

2.75

3.00

3.25

3.50

3.75

4.00

2 / 0.2

2.21

2.46

2.71

2.96

3.21

3.46

3.71

4 / 0.4

2.31

2.56

2.81

3.06

3.31

3.56

3.81

6 / 0.6

2.41

2.66

2.91

3.16

3.41

3.66

3.91

8 / 0.8 (Nom.)

2.50

2.75

3.00

3.25

3.50

3.75

4.00

10 / 1.0

2.56

2.81

3.06

3.31

3.56

3.78

4.08

12 / 1.2

2.62

2.87

3.12

3.37

3.62

3.89

4.16

14 / 1.4

2.68

2.93

3.18

3.43

3.68

3.96

4.24

16 / 1.6 (RBP)

2.74

2.99

3.24

3.49

3.74*

4.02*

4.30*

18 / 1.8

2.78

3.03

3.29

3.55

3.80

4.08

4.36

22 / 2.2

--

--

--

--

--

--

--

24 / 2.4

--

--

--

ABP

ABP

ABP

ABP

26 / 2.6

ABP

ABP

ABP

--

--

--

--



Nom./Nominal Pressure ABP: Average Burst Pressure

RBP/Rated Burst Pressure (do not exceed)

*14 atm (1.4 MPa) for 3.50 mm, 3.75 mm and L > 35 mm / for 4.00 mm and L > 30 mm
