The filigree bare metal cobalt chromium alloy coronary stent with excellent flexibility and pushability, lowest crossing profile and extremely biocompatibility

Of course Made In Germany

PRODUCT DETAILS

Pre-mounted stent onto a double lumen PTCA catheter for rapid exchange use with a semi-compliant balloon.

Two radio-opaque markers, proximal and distal.

140 cm working catheter length, 25 cm from tip.

Nominal inflation pressure at 8 atm, rated burst inflation pressure at 16 atm / 14 atm for 3.50 mm @ L > 35 mm and for 4.00 mm @ L > 30 mm.

0.035” average crossing profile. 0.064” min. guiding catheter I.D. 0.014” max. guide wire O.D.

Technical specifications

Type of stent design	Slotted tube, open cell design connected with 3 interlinks per segment
Stent design details	6 zigzag elements per ringelement
Standard lengths	8/12/16/20/24/28/32/38/42 mm
Stent material	cobalt chromium alloy L605 (ASTM F 90-01)
Expansion range	2.5/2.75/3.0/3.5/4.0 mm
Strut thickness	0.00315" (0.08 mm)
Strut width (main segment)	0.00315" (0.08 mm)
Strut width (interlink)	0.00315" (0.08 mm)
Shortening after expansion	< 2 %
Mechanical recoil	< 3.0 %
Metal coverage	~ 10 %
Longitudinal flexibility	Excellent
Average crossing profile	0.035" (0.90 mm)
Stent magnetism	Non magnetic
Min. guiding catheter I.D.	0.064” (1.63 mm)
Max. guide wire O.D.	0.014” (0.36 mm)
Stent delivery system	Rapid exchange delivery system, 140 cm working length, 25 cm from tip. A semi-compliant balloon, nominally max. 0.5 mm longer than the stent, with two radiopaque markers. Nominal inflation pressure: 8 atm (0.8 MPa); Rated burst inflation pressure: 16 atm (1.6 MPa) / 14 atm (1.4 MPa) for ∅ 3.50 mm, 3.75 mm @ L > 35 mm and for ∅ 4.00 mm @ L > 30 mm

Order-Number

Stent length	Stent diameter
Stent length	2.5 mm	2.75 mm	3.0 mm	3.5 mm	4.0 mm
8 mm	AL200825c	AL2008275c	AL200830c	AL200835c	AL200840c
12 mm	AL201225c	AL2012275c	AL201230c	AL201235c	AL201240c
16 mm	AL201625c	AL2016275c	AL201630c	AL201635c	AL201640c
20 mm	AL202025c	AL2020275c	AL202030c	AL202035c	AL202040c
24 mm	AL202425c	AL2024275c	AL202430c	AL202435c	AL202440c
28 mm	AL202825c	AL2028275c	AL202830c	AL202835c	AL202840c
32 mm	AL203225c	AL2032275c	AL203230c	AL203235c	AL203240c
38 mm	AL203825c	AL2038275c	AL203830c	AL203835c	AL203840c
42 mm	AL204225c	AL2042275c	AL204230c	AL204235c	AL204240c

other lengths and diameters on request

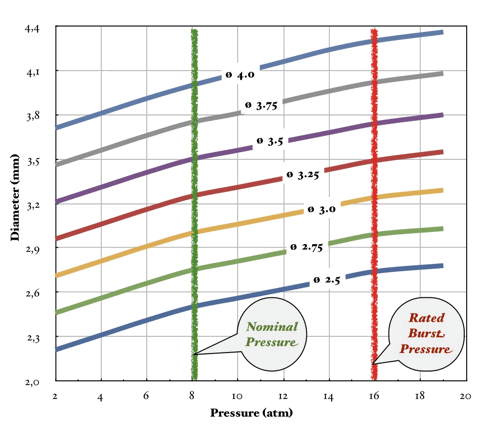

Compliance Data (In vitro compliance @ 37.5°C, tolerance ± 0.10 mm)

Pressure atm/MPa	Stent Placement I.D. (mm)
Pressure atm/MPa	2.50	2.75	3.00	3.25	3.50	3.75	4.00
2 / 0.2	2.21	2.46	2.71	2.96	3.21	3.46	3.71
4 / 0.4	2.31	2.56	2.81	3.06	3.31	3.56	3.81
6 / 0.6	2.41	2.66	2.91	3.16	3.41	3.66	3.91
8 / 0.8 (Nom.)	2.50	2.75	3.00	3.25	3.50	3.75	4.00
10 / 1.0	2.56	2.81	3.06	3.31	3.56	3.78	4.08
12 / 1.2	2.62	2.87	3.12	3.37	3.62	3.89	4.16
14 / 1.4	2.68	2.93	3.18	3.43	3.68	3.96	4.24
16 / 1.6 (RBP)	2.74	2.99	3.24	3.49	3.74*	4.02*	4.30*
18 / 1.8	2.78	3.03	3.29	3.55	3.80	4.08	4.36
22 / 2.2	--	--	--	--	--	--	--
24 / 2.4	--	--	--	ABP	ABP	ABP	ABP
26 / 2.6	ABP	ABP	ABP	--	--	--	--

Nom./Nominal Pressure ABP: Average Burst Pressure

RBP/Rated Burst Pressure (do not exceed)

*14 atm (1.4 MPa) for ∅ 3.50 mm, ∅ 3.75 mm and L > 35 mm / for ∅ 4.00 mm and L > 30 mm

Rated burst pres.: 14 atm for ∅ 3.50, 3.75 mm @ L > 35 mm and for ∅ 4.00 mm @ L > 30 mm
