PRODUCT DETAILS
.035” Sirolimus coating to prevent restenosis, with a conformal coating
of a biodegradable polymer carrier loaded with 1.4 µg sirolimus
per mm2 stent surface. Exceptionally smooth and tapered soft tip. Ultra low entry profile for excellent trackability. Stent diameter: 4/5/6/7/8/9/10/12mm. Stent length: 20/40/60/80/100/120/ 150mm. Catheter length (.035“): 80 and 135cm. Guidewire: Max .035". Over-the-wire Design, Bi-Lumen design Nominalpressure 6 bar RBP between 10 and 16 bar (atm),
depending on balloon diameter and length 4-fold for balloon diameters 4 and 5 mm, 5-fold for all
other diameters 5F introducer sheath compatibility for diameters 4, 5
and 6 mm, but only up to 6x80 mm. The 6x100 and longer are 6 F compatible. 6F introducer sheath compatibility for all other diameters. |
Technical specifications
Type of catheter design |
Specially designed for reaching the outmost remote infra-popliteal lesions
|
Best balance performance: Pushability, Crossability, Trackability,
kink resistance & Flexibility |
|
OTW, semi-compliant, with 2 radio markers; Balloon: max. 0.5 mm longer than the stent |
|

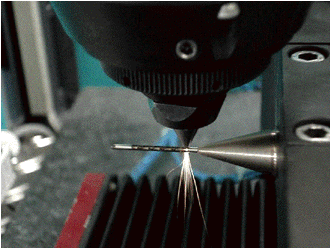

Type of stent design |
Slotted tube, open cell |
Strut thickness / width |
0.0063" (0.16 mm) / 0.0065"
(0.165 mm) |
Stent Coating |
Sirolimus + Fully biodegradable matrix for drug release up to six weeks. |
Stent magnetism |
Non magnetic |
Max. guide wire O.D. |
0.035“ |
Catheter lengths |
80, 135 cm |
Stent and Balloon material |
316LVM (stent), Polyn-P (Balloon) |
Balloon folds 4 to 5 mm |
4 folds memory |
Balloon folds 6 to 12 mm |
5 folds memory |
Stent diameter |
4.0, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0, 12.0 mm |
Stent length |
20, 40, 60, 80, 100, 120, 150 mm |
Introducer |
5F introducer sheath compatibility for diameters 4, 5 and 6 mm, but only
up to 6x80 mm. The 6x100 and longer are 6 F compatible. 6F introducer sheath compatibility for all other diameters. |
Nominal inflation pressure |
6 atm (0.6 MPa) |
Rated burst inflation pressure |
10 and 16 bar (atm), depending on balloon
diameter and length |
Flexibility |
Excellent |
Storage |
Store in a dry place below 30º C Keep away from light and heat |
Other characteristics |
Ultra low entry profile for a-traumatic & excellent trackability |
Sterilization |
Ethylene oxide gas (ETO) |
Compliance Data (In vitro compliance @ 37.5°C, tolerance
± 0.10 mm)
Pressure atm / MPa |
Balloon Diameter (mm) |
|||||||
4.00 |
5.00 |
6.00 |
7.00 |
8.00 |
9.00 |
10.00 |
12.00 |
|
4 / 0.4 |
3.78 |
4.80 |
5.68 |
6.67 |
7.45 |
8.44 |
9.54 |
11.53 |
NOM 6 / 0.6 |
4.00 |
5.00 |
6.00 |
7.00 |
8.00 |
9.00 |
10.00 |
12.00 |
8 / 0.8 |
4.15 |
5.15 |
6.16 |
7.19 |
8.31 |
9.34 |
10.27 |
12.24 |
10 / 1.0 |
4.28 |
5.26 |
6.30 |
7.33 |
8.53 |
9.61 |
10.45 |
12.45 |
11 / 1.1 |
4.33 |
5.31 |
6.37 |
7.41 |
8.64 |
9.76 |
10.56 |
12.56 |
12 / 1.2 |
4.40 |
5.37 |
6.44 |
7.48 |
8.77 |
9.91 |
10.74 |
12.69 |
13 / 1.3 |
4.46 |
5.43 |
6.52 |
7.55 |
8.89 |
10.07 |
10.83 |
-- |
14 / 1.4 |
4.53 |
5.49 |
6.59 |
7.63 |
9.00 |
10.21 |
10.92 |
-- |
15 / 1.5 |
4.60 |
5.58 |
6.67 |
7.70 |
9.12 |
-- |
-- |
-- |
16 / 1.6 |
4.67 |
5.64 |
6.79 |
7.78 |
9.25 |
-- |
-- |
-- |
17 / 1.7 |
4.75 |
5.72 |
6.84 |
-- |
-- |
-- |
-- |
-- |
18 / 1.8 |
4.83 |
5.80 |
-- |
-- |
-- |
-- |
-- |
-- |
Nom.: Nominal
Pressure: 6 atm/bar, RBP:
Rated Burst Pressure (do not exceed):
RBP .035” caths.: 16 atm/bar
for ∅ 4.0 (all lengths) and ∅
5.0/6.0 (length 20-60 mm);
14 atm/bar for ∅ 5.0/6.0
(length 80-150 mm) and ∅ 7.0/8.0 (length 20-60 mm);
12 atm/bar for ∅ 7.0/8.0
(length 80-150 mm) and ∅ 9.0/10.0 (length 20-60 mm);
10 atm/bar for ∅ 12.0 (length
20-60 mm)
Order-Number
Stent Length (mm) |
Stent ∅ (mm) |
|||||||
4 |
5 |
6 |
7 |
8 |
9 |
10 |
12 |
|
20 |
AL162040R |
AL162050R |
AL162060R |
AL162070R |
AL162080R |
AL162090R |
AL1620100R |
AL1620120R |
40 |
AL164040R |
AL164050R |
AL164060R |
AL164070R |
AL164080R |
AL164090R |
AL1640100R |
AL1640120R |
60 |
AL166040R |
AL166050R |
AL166060R |
AL166070R |
AL166080R |
AL166090R |
AL1660100R |
AL1660120R |
80 |
AL168040R |
AL168050R |
AL168060R |
AL168070R |
AL168080R |
- |
- |
- |
100 |
AL1610040R |
AL1610050R |
AL1610060R |
AL1610070R |
AL1610080R |
- |
- |
- |
120 |
AL1612040R |
AL1612050R |
AL1612060R |
AL1612070R |
AL1612080R |
- |
- |
- |
150 |
AL1615040R |
AL1615050R |
AL1615060R |
AL1615070R |
AL1615080R |
- |
- |
- |

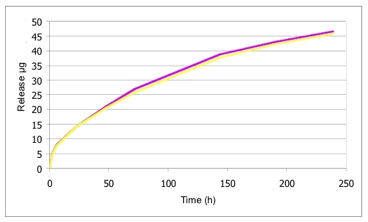

Drug release rate
