alco • advanced lightweight constructions • GmbH |
|
|
|||||
|
|
The filigree Sirolimus eluting cobalt chromium coronary stent with
fully bio-degradable matrix for drug release up to six weeks |
PRODUCT DETAILS
Drug product: A conformal coating of a polymer carrier
loaded with 1.4 µg sirolimus/rapamycin per mm2 stent surface.
Pre-mounted stent onto a double lumen PTCA catheter for
rapid exchange use with a semi-compliant balloon, two radio-opaque markers,
proximal and distal.
140 cm working length, 25 cm from tip.
Nominal inflation pressure at 8 atm,
Rated burst inflation pressure at 16 atm / 14 atm for 3.50 mm @ L > 35 mm and for 4.00 mm @ L > 30
mm.
0.035” average crossing profile. 0.064”
min. guiding catheter I.D. 0.014” max. guide
wire O.D.
Technical specifications
|
Type of stent design |
Slotted tube, open cell design connected with 3 interlinks per segment |
|
Stent design details |
6 zigzag elements per ringelement |
|
Standard lengths |
8/12/16/20/24/28/32/38/42 mm |
|
Stent material |
cobalt chromium
alloy L605 (ASTM F 90-01) |
|
Expansion range |
2.5/2.75/3.0/3.5/4.0 mm |
|
Strut thickness |
0.00315"
(0.08 mm) |
|
Strut width (main segment) |
0.00315"
(0.08 mm) |
|
Strut width (interlink) |
0.00315"
(0.08 mm) |
|
Shortening after expansion |
< 2 % |
|
Mechanical recoil |
< 3.0 % |
|
Metal coverage |
~ 10 % |
|
Longitudinal flexibility |
Excellent |
|
Average crossing profile |
0.035" (0.90 mm) |
|
Stent magnetism |
Non magnetic |
|
Min. guiding catheter I.D. |
0.064” (1.63 mm) |
|
Max. guide wire O.D. |
0.014” (0.36 mm) |
|
Stent delivery system |
Rapid exchange delivery system, 140 cm working length, 25 cm from tip. A
semi-compliant balloon, nominally max. 0.5 mm longer than the stent, with two
radiopaque markers. Nominal inflation pressure: 8 atm
(0.8 MPa); Rated burst inflation pressure: 16 atm (1.6 MPa) / 14 atm (1.4 MPa) for ∅ 3.50 mm, 3.75 mm @ L > 35 mm and for ∅ 4.00 mm @ L > 30 mm |
|
Drug product |
A conformal coating of a polymer carrier loaded with 1.4 µg sirolimus (rapamycin) per sqmm stent surface |
Order-Number
|
Stent length |
Stent diameter |
||||
|
2.5 mm |
2.75 mm |
3.0 mm |
3.5 mm |
4.0 mm |
|
|
8 mm |
AL200825cr |
AL2008275cr |
AL200830cr |
AL200835cr |
AL200840cr |
|
12 mm |
AL201225cr |
AL2012275cr |
AL201230cr |
AL201235cr |
AL201240cr |
|
16 mm |
AL201625cr |
AL2016275cr |
AL201630cr |
AL201635cr |
AL201640cr |
|
20 mm |
AL202025cr |
AL2020275cr |
AL202030cr |
AL202035cr |
AL202040cr |
|
24 mm |
AL202425cr |
AL2024275cr |
AL202430cr |
AL202435cr |
AL202440cr |
|
28 mm |
AL202825cr |
AL2028275cr |
AL202830cr |
AL202835cr |
AL202840cr |
|
32 mm |
AL203225cr |
AL2032275cr |
AL203230cr |
AL203235cr |
AL203240cr |
|
38 mm |
AL203825cr |
AL2038275cr |
AL203830cr |
AL203835cr |
AL203840cr |
|
42 mm |
AL204225cr |
AL2042275cr |
AL204230cr |
AL204235cr |
AL204240cr |
other lengths and diameters on request
Compliance Data (In vitro compliance @ 37.5°C, tolerance ± 0.10 mm)
|
Pressure atm/MPa |
Stent Placement I.D. (mm) |
||||||
|
2.50 |
2.75 |
3.00 |
3.25 |
3.50 |
3.75 |
4.00 |
|
|
2 / 0.2 |
2.21 |
2.46 |
2.71 |
2.96 |
3.21 |
3.46 |
3.71 |
|
4 / 0.4 |
2.31 |
2.56 |
2.81 |
3.06 |
3.31 |
3.56 |
3.81 |
|
6 / 0.6 |
2.41 |
2.66 |
2.91 |
3.16 |
3.41 |
3.66 |
3.91 |
|
8 /
0.8 (Nom.) |
2.50 |
2.75 |
3.00 |
3.25 |
3.50 |
3.75 |
4.00 |
|
10 / 1.0 |
2.56 |
2.81 |
3.06 |
3.31 |
3.56 |
3.78 |
4.08 |
|
12 / 1.2 |
2.62 |
2.87 |
3.12 |
3.37 |
3.62 |
3.89 |
4.16 |
|
14 / 1.4 |
2.68 |
2.93 |
3.18 |
3.43 |
3.68 |
3.96 |
4.24 |
|
16 / 1.6
(RBP) |
2.74 |
2.99 |
3.24 |
3.49 |
3.74* |
4.02* |
4.30* |
|
18 / 1.8 |
2.78 |
3.03 |
3.29 |
3.55 |
3.80 |
4.08 |
4.36 |
|
22 / 2.2 |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
|
24 / 2.4 |
-- |
-- |
-- |
ABP |
ABP |
ABP |
ABP |
|
26 / 2.6 |
ABP |
ABP |
ABP |
-- |
-- |
-- |
-- |
Nom./Nominal Pressure ABP: Average Burst Pressure
RBP/Rated Burst Pressure (do not exceed)
*14 atm (1.4 MPa) for ∅ 3.50 mm, ∅ 3.75 mm and L > 35 mm /
for ∅ 4.00 mm and L > 30 mm

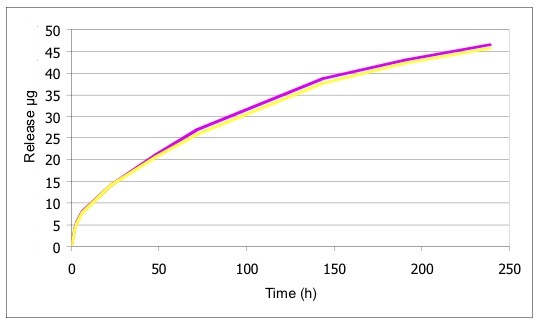

Drug release rate
Copyright
